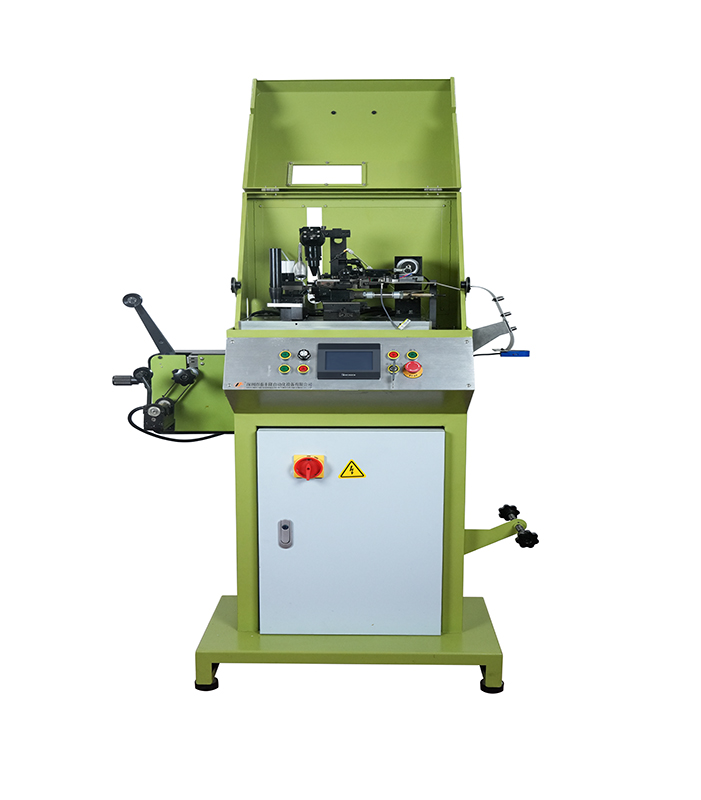

激光焊接绳索链机

特点 FEATURES

拥有激光自动焊接功能,主要用于生产绳串链，可根据不同需求更换不同大小模具配件做出不同大小的绳串链条，同时配合激光焊接效率更高稳定性更强With automatic laser welding system, mainly used for producing the rope chain, it will bemuch more efficient and stable with laser welding system.

操作说明 OPERATINGINSTRUCTIONS

1.将模具蝶旋槽,线芯，上刀，下刀，上钳，下钳，调整到合适位置，把规格合适的线径调整到螺旋槽里面进行出园，配合线芯转到合适位置

2.调整上钳到合适位置进夹住线圈

3.调整上刀下万至合适位置进行线圈切断

4.调整下钳到合适位置进行圈口合拢

5.调整吹气针头把圈吹到合适位置

6.调整激光红点对焦到合适位置进行焊接

7.调整已焊接合口圈进行穿环

1.Adjust the spiral, pin, horizontal knife, vertical knife, pincers,facons to the properposition insert the wire into the sprial and position it by the pin

2.Adjust the pincers to clamp the spiral

3.Adjust the horizontal and vertical knife to cut the ring

4Adjust the facons to make the link

5.Adjust the air jets to the proper position

6.Adjust the laser point to the proper position for welding

7.Pass through the welding link

技术参数 TECHNICAL PARAMETER

参数line diameter parameterD 0.20mm/0.50mm

电压0Input power 220V/50HZ

功率Rated power  400W

转速Maximum speed 口 200rmp

外型规格Size 口48cm*85cm*145cm

重量Net weight口 110KG
