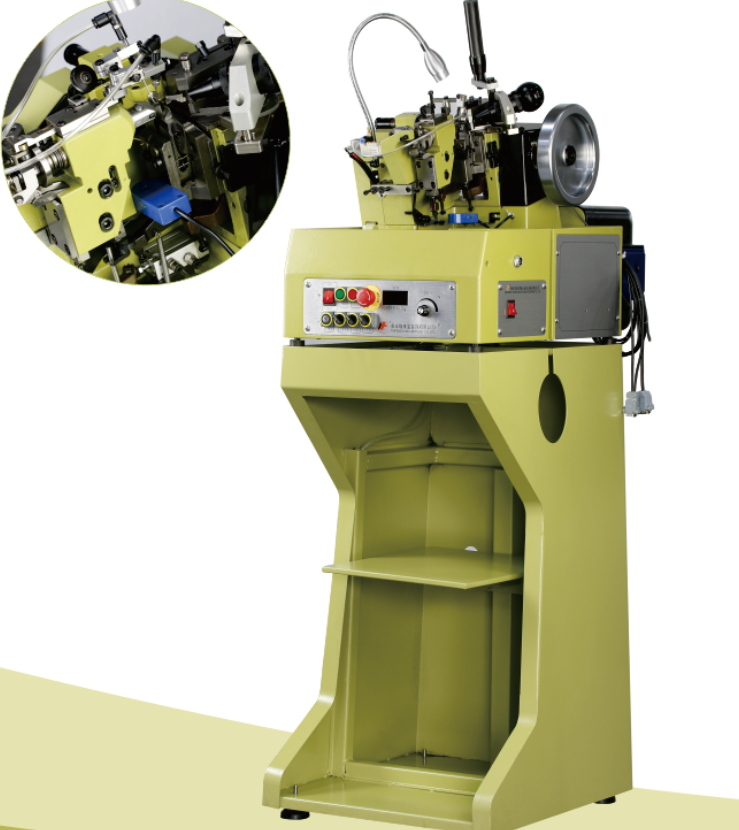

plasma welding spiga chain making machine

 plasma welding spiga chain making machine

FEATURES

With automatic laser welding system, mainly used for producing the single and doublecurb chain, double spiga chain, triple spiga chain, it will be much more efficient and stablecompared with laser welding system.

OPERATINGINSTRUCTIONSzontal knife, vertical knife, pincers, facons to the properposition insert the wire into the sprial and position it by the pin.

2.Adjust the pincers to clamp the spiral

3.Adjust the horizontal and vertical knife to cut the ring

4.Adjust the facons to make the link

5.Adjustthe airjets to the proper position

6.Adjustthe laser point to the proper position for welding

7.Pass through the welding link

TECHNICAL PARAMETER

Line diameterparameter: 0.13mm/0.40mm

Inputpower: 220V/50HZ

Rated power:400W

Maximum speed; 200rmp

Size: 48cm*85cm*145cm

Net weight:110KG
