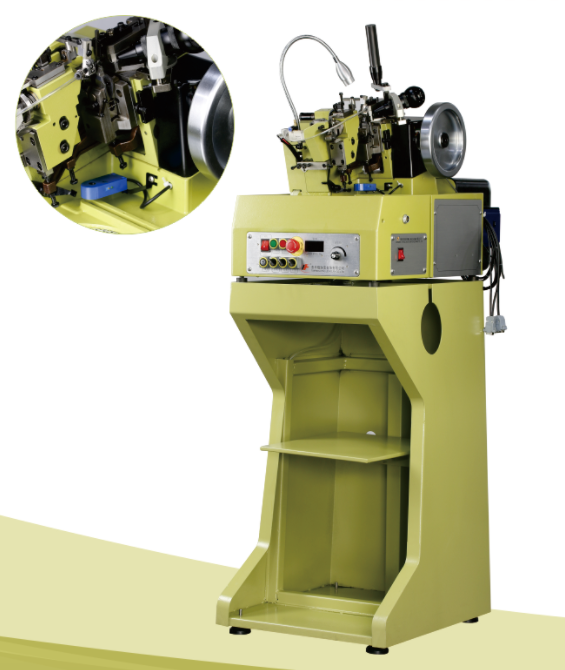

rope chain machine with laser welding system

ofrope chain machine with laser welding system

FEATURES

Two pairs of cams can be easily replaced, used for curb, double curb chain and cable, triplecable to change its movement action. Curb chain, double curb chain, cable chain, triplecable chain.rope chain and other chains can be produced.

OPERATINGINSTRUCTIONS

1.Adjust the spiral. pin, horizontal knife, vertical knife, pincers, facons to the properposition, insert the wire into the sprialand position it by the pin.

2.Adjust the pincers to clamp the spiral

3 Adjust the horizontal and vertical knife to cut the ring

4.Adjustthe facons to make the link

5. Adjust the laser point to the proper position for welding

6.Pass through the welding link

TECHNICAL PARAMETER

Line diameter parameter D ：0.13mm-0.40mm

IInputpower：220V/50HZ

Rated power：400w

 Maximum speed ：600rmp

Size：45cm85cm*145cm

Net weight：110KG
