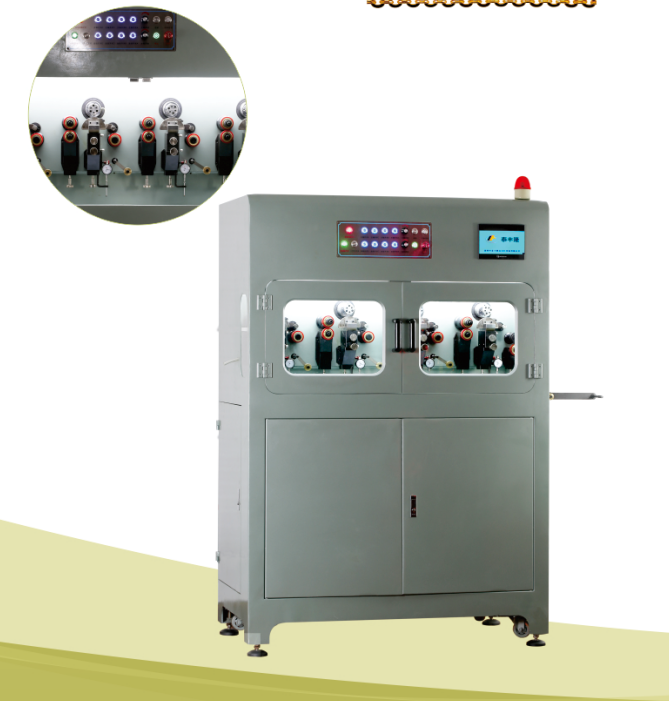

Four-axis Diamond cutting Machine

Four-axis Diamond cutting Machine

FEATURES

Four vertical heads diamond cutting machine prearranged for horizontal heads, suitableor the flat and edges lapping on various medium and small chains.This machine candiamond cut anchor chain and cable chain just by one time, which will be much moreefficient and reduce production cost.

OPERATINGINSTRUCTIONS

2.Install the proper disk for corresponding chain

3.Install the tools with correct angle

4. Adiust the tool to the safe distance between the chain, then start the diamond cuttinghead and adjust it to the proper distance for diamond cutting on the chains.5. Switch the machine to automatic working mode after adjusting four side tools

TECHNICAL PARAMETER

Inputpower: 220V/50HZ

Rated power: 10KW

 Maximum speed: 24000rpm/min

Size:130cmx75cmx198cm

Netweight;:800kg
