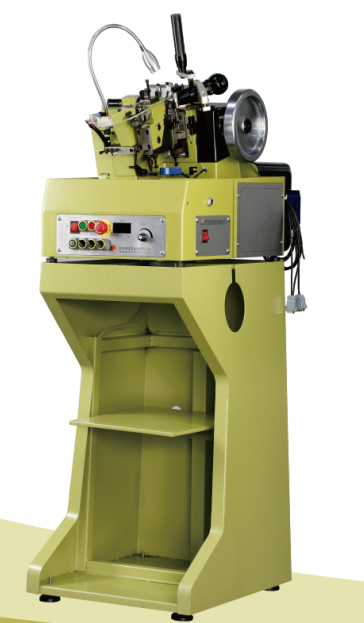

rope chain machine with laser welding system

 rope chain machine with laser welding system

FEATURES

With automatic laser welding system, mainly used for producing the rope chain, it will bemuch more efficient and stable with laser welding system.

OPERATINGINSTRUCTIONS

1.Adjust the spiral, pin, horizontal knife, vertical knife, pincers,facons to the properposition insert the wire into the sprial and position it by the pin

2.Adjust the pincers to clamp the spiral

3.Adjust the horizontal and vertical knife to cut the ring

4Adjust the facons to make the link

5.Adjust the air jets to the proper position

6.Adjust the laser point to the proper position for welding

7.Pass through the welding link

TECHNICAL PARAMETER

line diameter parameterD 0.20mm/0.50mm

0Input power 220V/50HZ

Rated power  400W

Maximum speed 口 200rmp

Size 口48cm*85cm*145cm

Net weight口 110KG
