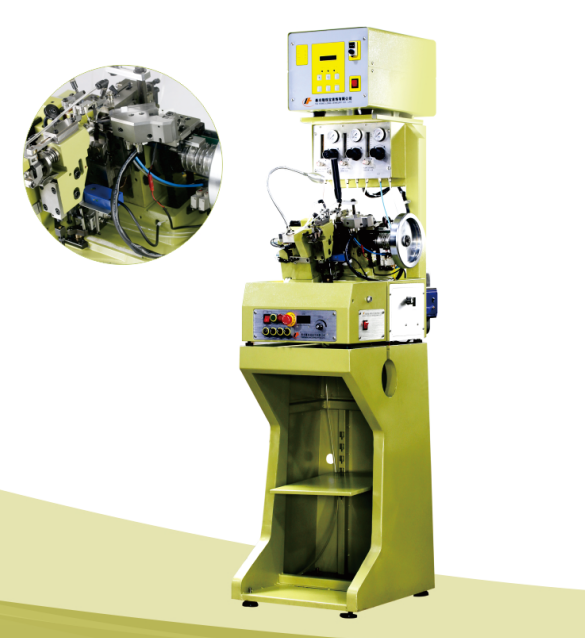

Plasma welding Chopin machine

FEATURES

With automatic welding function, machine equipped with a plasma nozzle, it use electronicsparks and argon alignment interface discharge, and so that the interface in an instantmelt to achieve welding effect. Left and Right curb chain, double spiga chain, triple spigachain can b

OPERATING INSTRUCTIONS

1.Adjust the spiral. pin. horizontal knife, vertical knife. pincers,facons to the properposition insert the wire into the sprial and position it by the pin.

2.Adjust the pincers to clamp the spiral

3.Adjust the horizontal and vertical knife to cut the ring

4.Adjust the facons to make the link

5.Adjust the link to the proper position for welding

6.Pass through the welding link

TECHNICAL PARAMETER

Production line diameter parameter D 0.2mm-0.60mm

Input power220V/50HZ

Rated power 800w

 Maximum speed  250rmp

SizeD 45cm*85cm*185cm

 Net weight142KG
