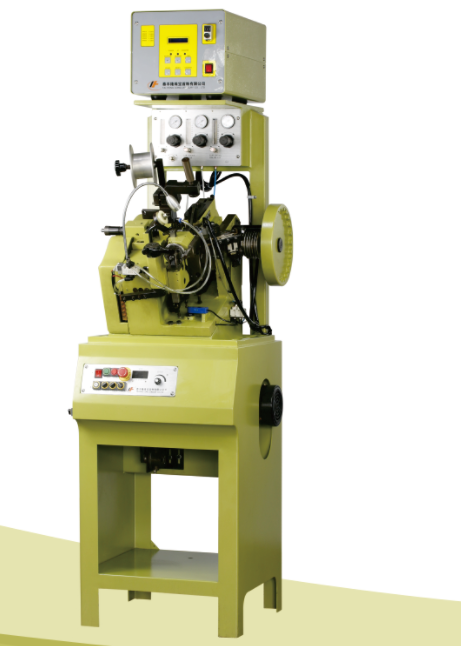

big size of chain making machine with laser welding system

big size of chain making machine with laser welding system

FEATURES

With automatic welding function, machine equipped with a plasma nozzle, it use electronicsparks and argon alignment interface discharge, and so that the interface in an instantmelt to achieve welding effect. Can be used for gold, platinum, K gold, silver, stainlesssteel welding. Curb chain, double curb chain, cable chain, triple cable chain, rope chainand other chains can be produced.

OPERATINGINSTRUCTIONS

1.Adjust the spiral. pin, horizontal knife, vertical knife, pincers, facons to the properpositioninsert the wire into the sprial and position it by the pin

2.Adjust the pincers to clamp the spiral

3.Adjust the horizontal and vertical knife to cut the ring

4.Adjust the facons to make the link

5.Adjust the link to the proper position for welding

6.Pass through the welding link

TECHNICAL PARAMETER

line diameter parameter: 0.5mm-2.0mm

Inputpower: 220V/50HZ

Rated power:1500W

Maximum speed: 200rpm

Size:75cm*70cm*195cm

Netweight:220kg
