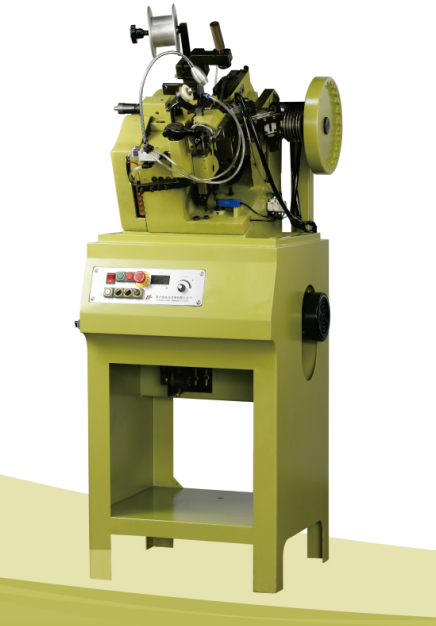

big size of chain making machine
FEATURES
This machine is used for producing big size of curb chain, double curb chain, cable chainand triple cable chain.
OPERATINGINSTRUCTIONS
1. Adjust the spiral. pin, horizontal knife, vertical knife, pincers, facons to the properposition insert the wire into the sprial and position it by the pin.
2.Adjust the pincers to clamp the spiral
3.Adjust the horizontal and vertical knife to cut the ring
4.Adjust the facons to make the link
5.Adjust the link to the proper position for welding
TECHNICAL PARAMETER
line diameter parameter: 0.5mm-2.0mm
Inputpower: 220V/50HZ
Rated power: 1000W
Maximum speed: 200rpm
Size:70cm*60cm*138cm
Net weight;170kg
